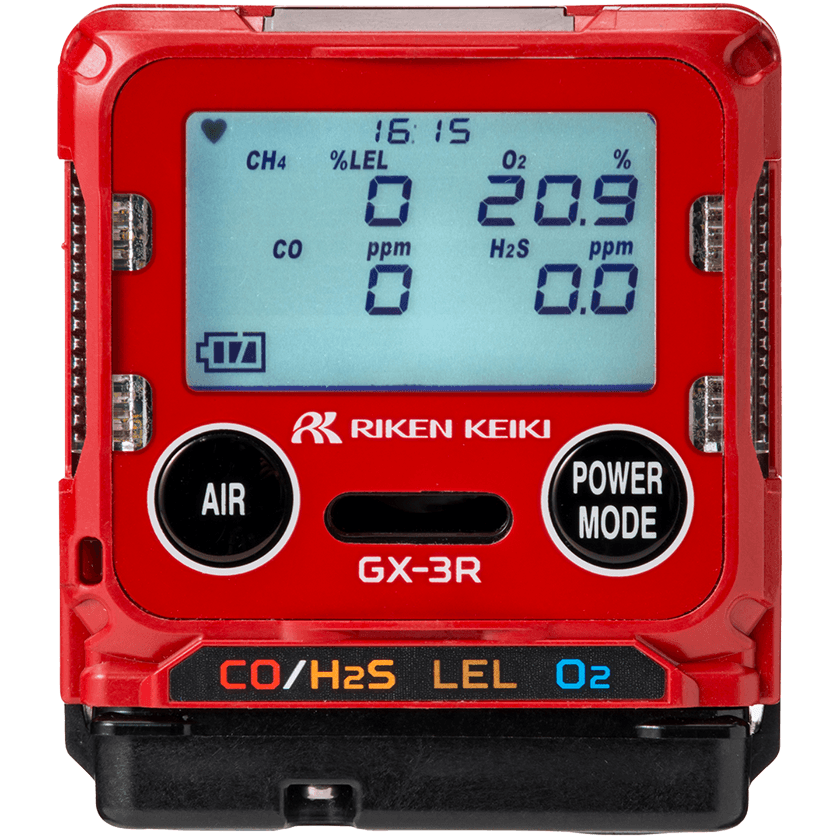

The Riken Keiki GX-3R 4 Gas Confined Space Gas Monitor measures a tiny 58(w) x 65(H)x 26(D)mm and weighs only 100g making it a revolution in compact design. The GX-3R is ideal for use in confined spaces as its size means it does not interfere with work even if it is attached in the breathing zone.
The breathing zone is within a 25cm radius of the worker's nose and mouth. HSE G409 COSHH General Guidance advises that “‘Personal sampling’ is taking an air sample near the worker’s breathing zone to measure the amounts of airborne substances inhaled for a stated task”
RP-3R Clip on pump unit for GX-3R Click here
The MED version is suitable for use on marine vessels worldwide
Ideal for Hydrogen rich environments
Can directly read 25 different combustible gases
Long life and high performance with 3 year warranty even on O2 sensor
Easy to wear on lapel in Breath Zone
40 x more resistant to silicone poisoning
Ultra robust and reliable drop tested to 7m
Ideal for noisy work environments
Long battery mode allows the monitor to be used continuously for up to 40 hours before recharging. IP66/68 compliance as well as a 3-year sensor warranty allows the GX-3R to be used with confidence.
The GX-3R has 3 pre-set alarm settings per gas and an over alarm which allows the alarms to be set at EH40 workplace exposure limits plus an additional alarm for a higher detection range.
An internal data logger allows 3600 event logs and 300 hours which can be read out using an IrDA link.
An Operating temperature range of -40- +60 degrees C (intermittent) -20- +50 Degrees C (continuous) allow the GX-3R to be used in many different environments and applications.
A loud 95dB alarms buzzer is also included.
The GX-3R uses 3 compact sensors including a brand new Electro-chemical Oxygen Sensor. The GX-3R Confined Space Monitor will detect, Combustibles, Hydrogen Sulphide, Oxygen as well as Carbon Monoxide. A new 3-year sensor warranty is now standard.
An optional multi-charger is available. Operators can charge multiple devices together saving considerable time.
In addition, a Calibration station as well Data logger adapter and software is available as an optional accessory. See SDM-3R Auto bump and calibration station here SDM-3R
The GX-3R is part of the GX-3R family together with the GX-3R Pro.
| Category | Portable gas detector |
|---|---|
| Type | Multi gas |
| Target gas | LEL/O2/CO/H2S |
| Detection range | 0～100%LEL(HC/CH4) 0～40vol%(O2) 0～2000ppm(CO) 0～200ppm(H2S) |
| Sampling method | Diffusion |
| Type of alarm | Gas alarms, Fault alarms |
| Display of alarm | Flashing light, buzzer, vibration |
| Explosion proof | Intrinsically safe |
| Ingress proof rating | IP66/68 |
| Approvals | ATEX, IECEx, MED Marine version also available |
| Power source | Direct charging Ni-MH battery pack (Can be fast charged in just 180min) |
| Continuous operation | Approx. 40 hours after full charge (with long battery mode) |
| Dimensions & Weight | Approx. 58(W) x 65(H) x 26(D) mm Approx. 100g |
| Operating temperature & Humidity | -40℃ to 60℃, (-40 to 140F) 0 to 95%RH, (Non-condensing) |
