Small- medium Ethernet web based scale gas monitoring system (GAs Detector Management System Lite）

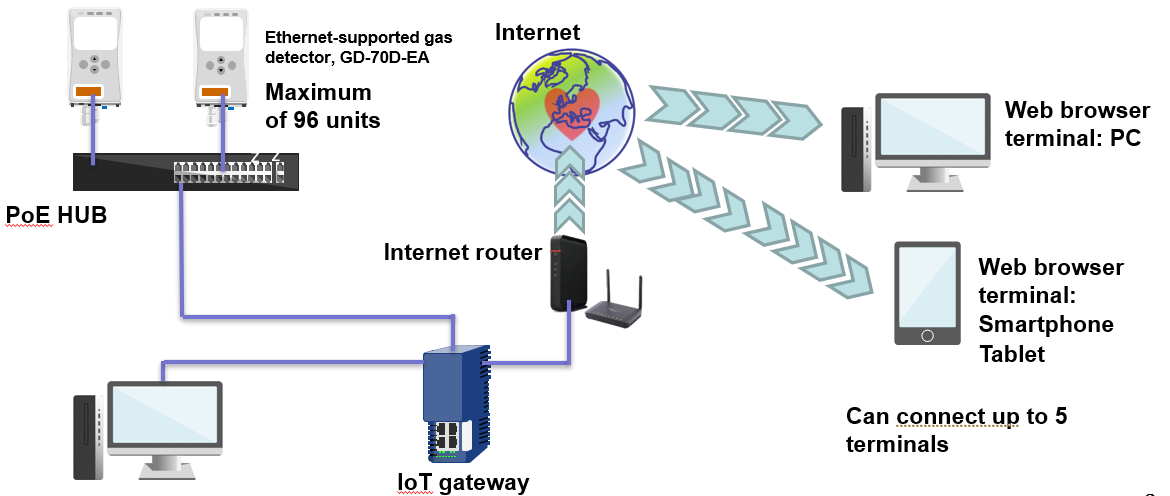

Up to 96 Ethernet-supported gas detectors (Model: GD-70D-EA see below )can be connected to the IoT gateway, a collective monitoring of information from the gas detectors is made possible (using MODBUS Slave function of GD-70D-EA).

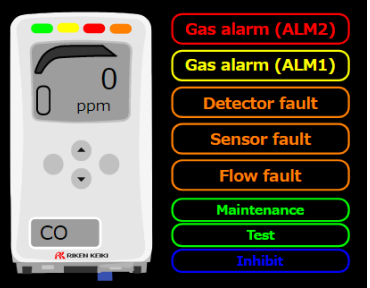

A integrated Gas monitoring system can be built by a combination of IoT gateway and gas detectors. When a gas leak is detected by individual detectors , gas signals(alarm status, gas concentration value and trend, alarm state, etc.) can be monitored remotely by Web browser terminals (PC, smartphone, and tablet)
※Up to 5 Web browser terminals can be connected at a time.
1. Local monitoring is made possible by Web browser.
2. Monitoring by smartphone and table is made possible by using the internet.
3. Networked information from gas detectors can be monitored.
4. By utilizing a generally available network, a Small-Medium scale, inexpensive gas monitoring system can be built.
5. No special application needed for PC, smartphone, and tablet : A Web browser is all you need.
GD-70D-EA is fixed type gas detector which supports Ethernet. It is a version of the Hugely popular GD-70D
By adopting the Ethernet standard IEEE802.af, communication and power can be networked with a single twisted pair cable, giving a reduction in wiring and cost .
