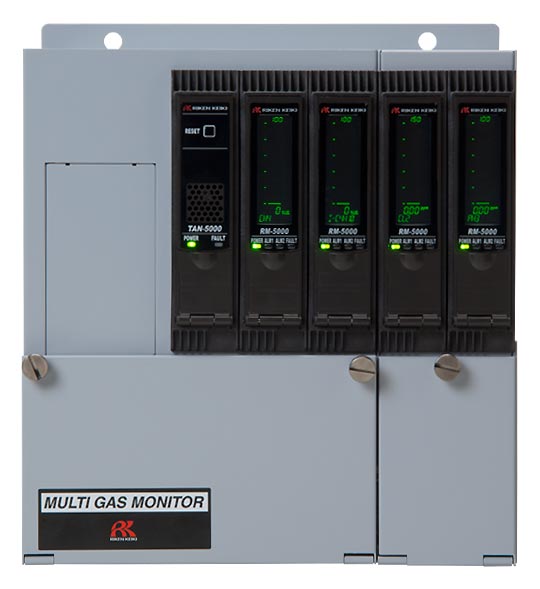

The Riken Keiki RM-5000 is a multi-channel Gas Monitor Panel. The RM-5000 is ideal for monitoring combustible gases, oxygen, and toxic gases. It is ideal for a range of industrial, manufacturing in addition to Marine applications.

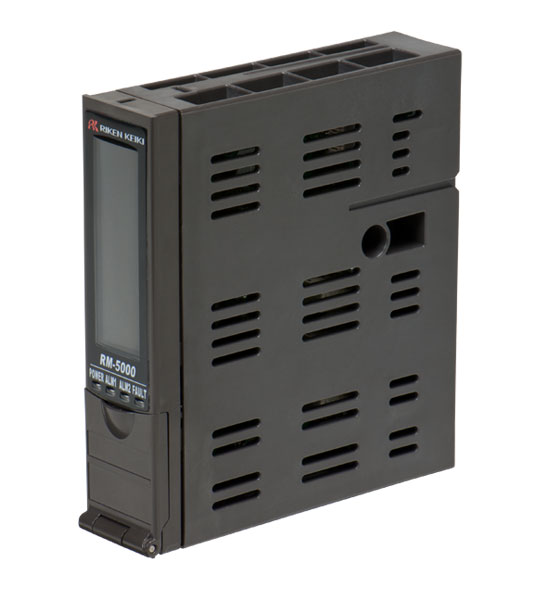

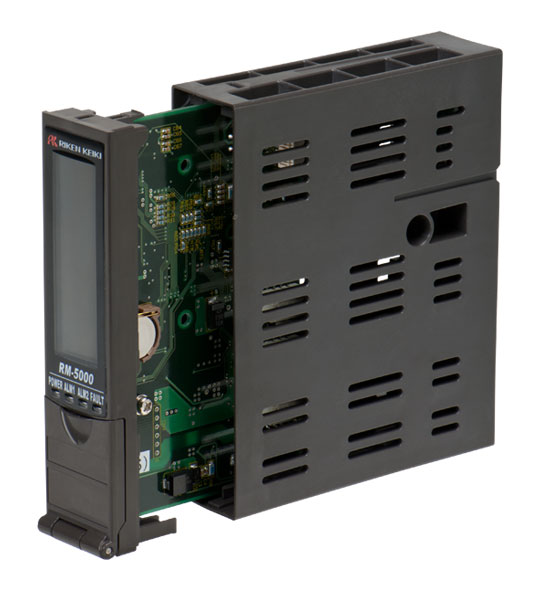

The RM-5000's clever modular design allows for monitoring of 2 to 12 channels. The RM-5000 achieves this by simply by inserting indicator units to match the gas required. In addition, a custom panel will accommodate up to 32 Channels. The modular indicator units’ slot into the case, users then connect detector heads for Carbon Monoxide, Oxygen in addition to Combustible gases and other toxic gases. Detector heads that can be used include the SD-1 and also the GD-A80 , GD-F3-AA as well as the GD-70D Intelligent pumped gas monitors .

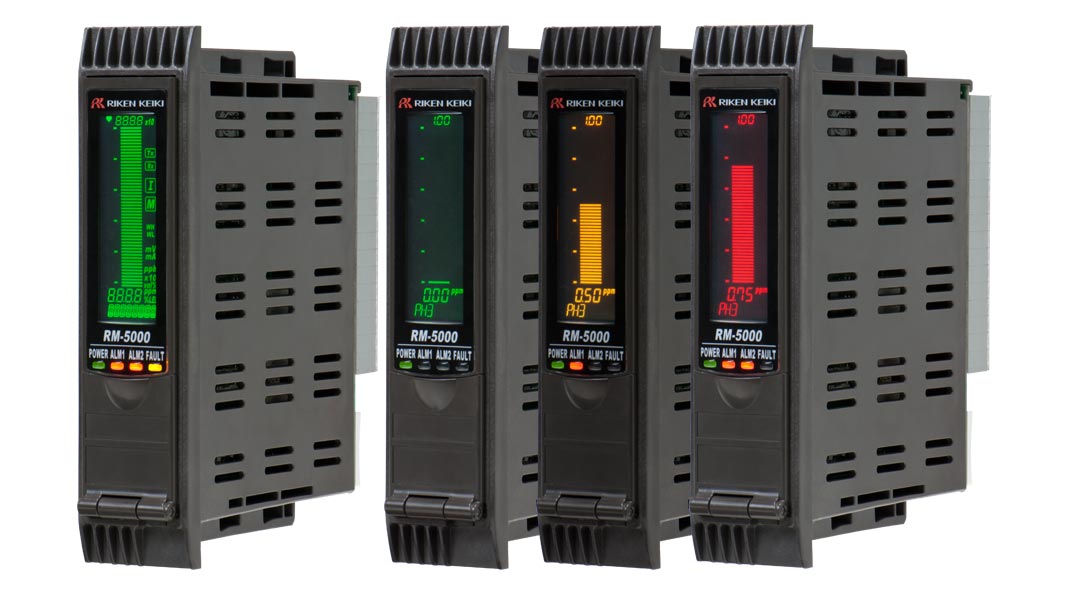

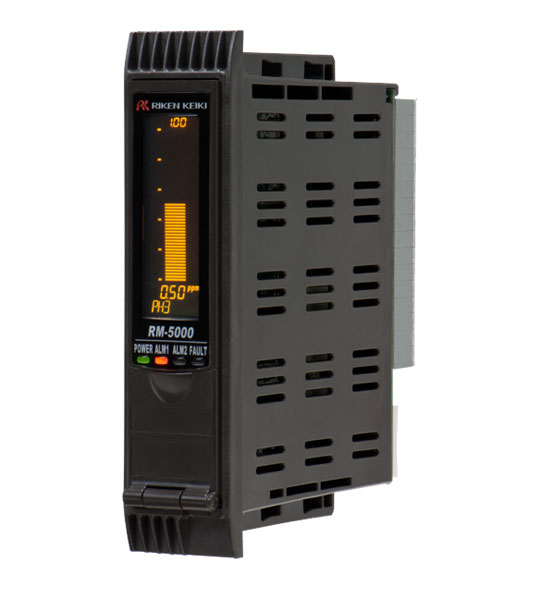

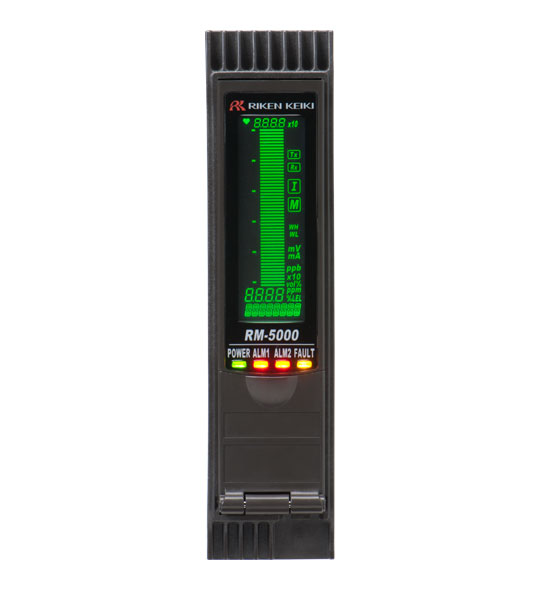

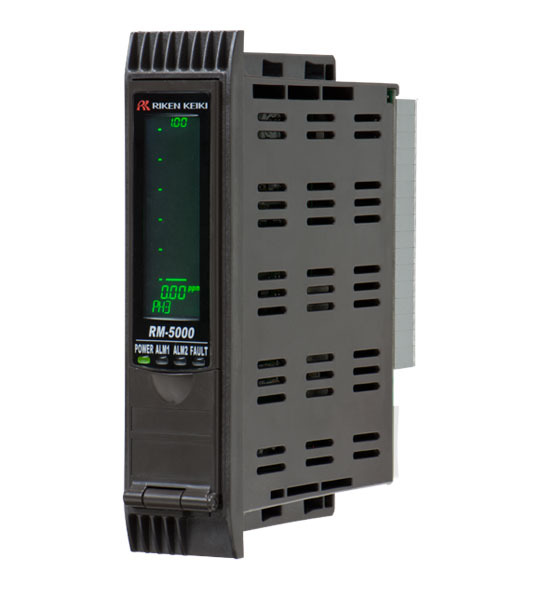

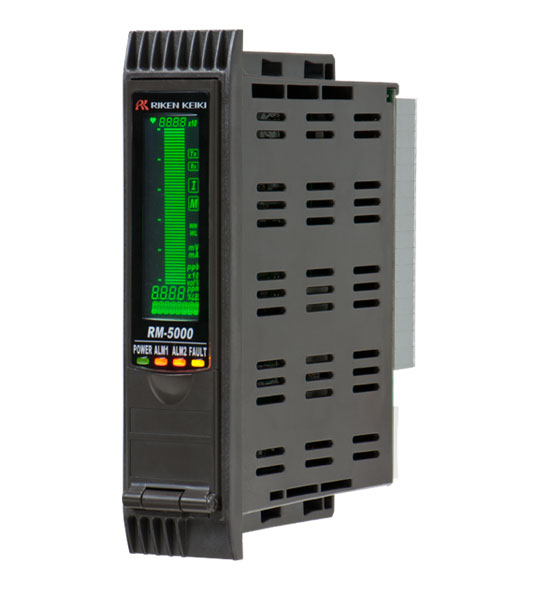

The indicator units each have an independent digital display that is easy to read, each indicator contains a bar meter and multi-colour display for ease of monitoring.
Allows for any number of channels & size of system to be constructed. Low maintenance & repair.
Easy integration into large systems.
Easy off the shelf solution.
All systems sizes are catered for.
Flexibility for any application.
Flexibility for any application.
Extremely robust & reliable long life span, & low cost of ownership.
Easy connection to external accessories such as remote sounder beacons , data loggers and dialers.

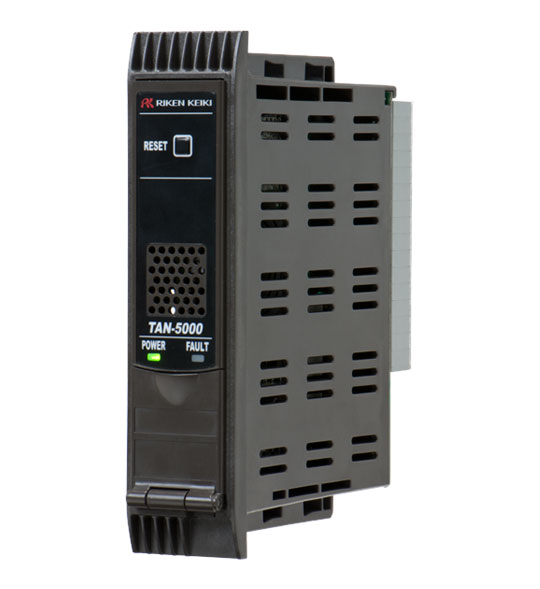

An alarm unit is fitted as standard, most importantly, a 4-20mA and RS-485 outputs are available. These outputs allows the RM-5000 to connect to external PLC's and building management systems. The function allows users to monitor every channel and data-log the results. This is an especially useful feature.
The RM-5000 is 24VDC powered, therefore it can be used with the BATPSU-600 battery backed power supply, to ensure continuous operation, even in the event of a power failure. A 240VAC version also available as an option.
Remote sounder beacons connected to the RM-5000 provide additional warnings in remote rooms and areas.
The RM-5000 is extremely robust and more importantly, dependable, making it ideal for use in a range of Industrial and Marine applications. The RM-5000 is used to monitor industry/sectors for example: Manufacturing, Plant Rooms, Laboratories, Automotive, Oil Storage, Marine Tankers, and Cargo Vessels.
SB-100 Remote Sounders Beacons in addition ATEX versions are available.
BE-600 Remote Beacons in addition ATEX versions are available.
WPSU-24 Series Battery backed 240VAC to 24VDC UPS.
BAT-600 1.2 to 7 Ah sealed lead acid batteries for the above. 2 x required.
AD-600 GSM text Autodialler integrated version (integrated into the BATPSU-600).
AD-600 GSM text Autodialler remote version with external housing.
ENC-600 IP-67 Enclosure for outdoor applications.
Indicator Units for the RM-5000 Gas Monitor Panel
GP-5001 as well as NC-5001 for Combustible Gases – Direct connect to detector head.
SP-5001 and GH-5001 for Combustible and Toxic – Semiconductor Sensor.
EC-5002 for Toxic – Direct connect to detector head.
OX-5001 as well as OX-5002 for Oxygen – Direct connect and 4-20mA input.
RM-5002 as well as RM-5003 for Oxygen / Combustible and Toxic 4-20mA inputs and outputs.
RM-5000 Detector Heads
GD-A80 for Combustible.
SD-1 for Combustible, Toxic and Oxygen.
GD-F3-AA as well as GD-F4-AA for Oxygen.
GD-70D for Toxic, Combustible and Oxygen.
|
RM-5000 Series
|
GP-5001 NC-5001 NC-5001W |
NP-5001 | SP-5001 | GH-5001 |
|
Detection Gas
|
Combustible | Combustible Inert Gases | Combustible/Toxic | |
|
Indication
|
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors) | |||
|
Type of acceptable detector head
|
Catalytic combustion new ceramic | Thermal conductivity | Special catalytic/semiconductor combination sensor | semiconductor |
|
Acceptable input signal
|
Direct sensor signal | |||
|
Applicable cable
|
CVV-4C | CVVS-4C | CVV-4C | CVVS-3C |
|
Max distance
|
Max 2.0km | |||
|
Output signal
|
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω | |||
|
Alamr indication
|
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in | |||
|
Trouble Alarm
|
Orange lamp flashing (fault), non-latching / content indication | |||
|
Alarm relays
|
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive) | |||
|
Operating condition
|
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing) | |||
|
Power supply
|
24VDC | |||
|
Power consumption
|
Max 7W | |||
|
Dimensions & weight
|
Approx. 1.16w x 4.72h x 3.62d inches | |||
|
Structure
|
Card type with front display enclosed in a case (a single-unit or multi-unit case) | |||
|
RM-5000 Series
|
EC-5002 | OX-5001 | OX-5002 | RM-5002 | RM-5003 |
|
Detection Gas
|
Toxic | Oxygen | Combustible, Toxic, Oxygen | ||
|
Indication
|
Character LCD (Digital and bar meter) Green, Yellow, Red (3-colors) | ||||
|
Type of acceptable detector head
|
Electrochemical cell | Galvanic cell | 4-20mA outputs | ||
| 2-wire type | 3-wire type | ||||
|
Acceptable input signal
|
4-20mA output | Direct Sensor | 4-20mA output | ||
|
Applicable cable
|
CVVS-2C | CVVS-3C | |||
|
Max distance
|
Max 2.0km | Max 600m | Max 2.0km | Depending on the detector | |
|
Output signal
|
Ouput of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω | ||||
|
Alamr indication
|
Flashing or lighting lamp: Red (alarm1), Red (alarm2), Self-latching or Auto reset, Lock-in | ||||
|
Trouble Alarm
|
Orange lamp flashing (fault), non-latching / content indication | ||||
|
Alarm relays
|
Normally energized or de-energized normally-open or closed contact rated 0.5A at 100VAC, 1.5A at 30VDC (resistive) | ||||
|
Operating condition
|
-10~+40C (14 F to 104 F), 10~90% RH (non-condensing) | ||||
|
Power supply
|
24VDC | ||||
|
Power consumption
|
Max 3W | Max 2W | Max 3W | Max 2W | Max 8W |
|
Dimensions & weight
|
Approx. 1.16w x 4.72h x 3.62d inches | ||||
|
Structure
|
Card type with front display enclosed in a case (a single-unit or multi-unit case) | ||||
