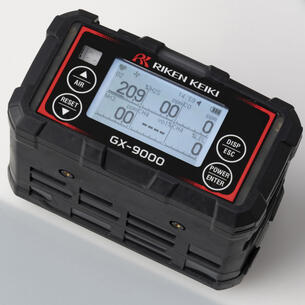

GX-9000 can detect up to 6 x different gas types simultaneously.
This is an extremely versitile Gas Detector suitable for Marine / Onshore and Underground applications.
Single gas detector covers many applications.
Directly reads 25 x Combustible Gases, User Selectable.
Easy data management via smartphone (Optional).
3 x year warranty on most sensors (NH3 sensor 2 years, O3 / VOC sensor 1 year).
Passes 1.5M drop test.
Protection rating equivalent to IP66/68.
MED approval pending.
The GX-9000 is the successor to GX/RX-8000 Series detectors, which have assured safety at sea, on land, and underground worldwide for over 10 x years since its launch.
GX-9000 is capable of simultaneously detecting up to 6 x different gases, including ammonia and VOCs,
GX-9000 Combines stability and portability. A high-power pump enables effective aspiration at distances of up to 45m to ensure peace of mind, even when working inside large-size tanks.
A single unit is capable of covering a wide range of Gas Detection requirements.
Proving to be one of most effective gas detector currently available on the market.
| Sampling method | Suction type/Double type |
| Principle of detection | New Ceramic catalytic Method, Thermal Conductivity Method, Non-Dispersive Infrared Method, Potentiostatic Electrolysis Method, Photo-Ionization Detector |
| Detection range | Depends on gas |
| Type of alarm | Gas alarm / fault alarm |
| Display of alarm | Lamp blinking / buzzer / gas concentration display blinking |
| Explosion protected construction | Flameproof enclosures + Intrinsic safety |
| Explosion-proof class | ATEX : Ⅱ1G Ex da ia ⅡC T4 Ga/Ⅱ1G Ex ia ⅡC T4 Ga IECEx: : Ex da ia ⅡC T4 Ga/Ex ia ⅡC T4 Ga |
| Ingress proof rating | IP66/68 |
| Approvals | Japan Ex, ATEX, IECEx, JIS ( MED Pending ) |
| CE marking | EMC / ATEX / RoHS |
| Power source | Lithium ion battery unit [BUL-9000] or Dry battery unit (AA alkaline battery 6 pcs.) [BUD-9000] |
| Continuous operation | Approx. 25 hours (fully charged) [Lithium ion battery unit] Approx. 12 hours (25℃, no alarm, no lighting) [Dry battery unit] * Varies depending on the mounted sensor. |
| Dimensions | Approx. 158 (W) × 85 (H) × 132 (D) mm (excluding projections) |
| Weight | Approx. 1.1 kg (includes battery and battery unit) |
| Operating temperature range | Temporary ambient conditions : -40 ℃ to +60 ℃ (no sudden changes) Continuous ambient conditions : -20 ℃ to +50 ℃ (no sudden changes) * May vary depending on the mounted sensor. |
| Operating humidity range | Temporary ambient conditions : 0 to 95 %RH (no condensation) Continuous ambient conditions :10 to 90 %RH (no condensation) * May vary depending on the mounted sensor. |
| Operating pressure range | 80 to 120 kPa (80 to 110 kPa for explosion-proof range) |
| Target gas | C2H2, CH4, CL2, CO, CO2, H2, H2S, HCL, i-C4H10, NH3, O2, O3, SO2, VOC |
