The SC-8000 is a single toxic gas detector built for tough as well as demanding environments. It is durable and sets new standards for rugged, reliable as well as portable toxic gas detection. The monitor is robust, yet lightweight. It is a sample drawing monitor that is designed to be intrinsically safe. The SC-8000 provides continuous exposure monitoring in safe or hazardous areas.
Higher accuracy at low levels than competitors
Can be carried on shoulder strap for ease of operation
Check State of room or space before entry
Ideal for harsh environments
Suitable for use in Hazardous areas
Easily lasts an extended work shift
View alarm events and gas level graphically on a PC
It sets a new standard for rugged, reliable, portable toxic gas detection. It is robust and lightweight. The SC-8000 is sample drawing and is designed to provide continuous exposure monitoring in safe as well as hazardous areas. It has ATEX Approval.
Users benefit from a large LCD display that makes reading the SC-8000 easy. It is simple to use even when the operator is wearing a hazmat suit. The Unit has data-logging as standard.
For loud environments the unit is equipped with a 95dB alarm that alternates between a high & low pitch so the alarm can be heard in noisy places. This, in addition to three bright LED lamps make the SC-8000 alarms very noticeable.

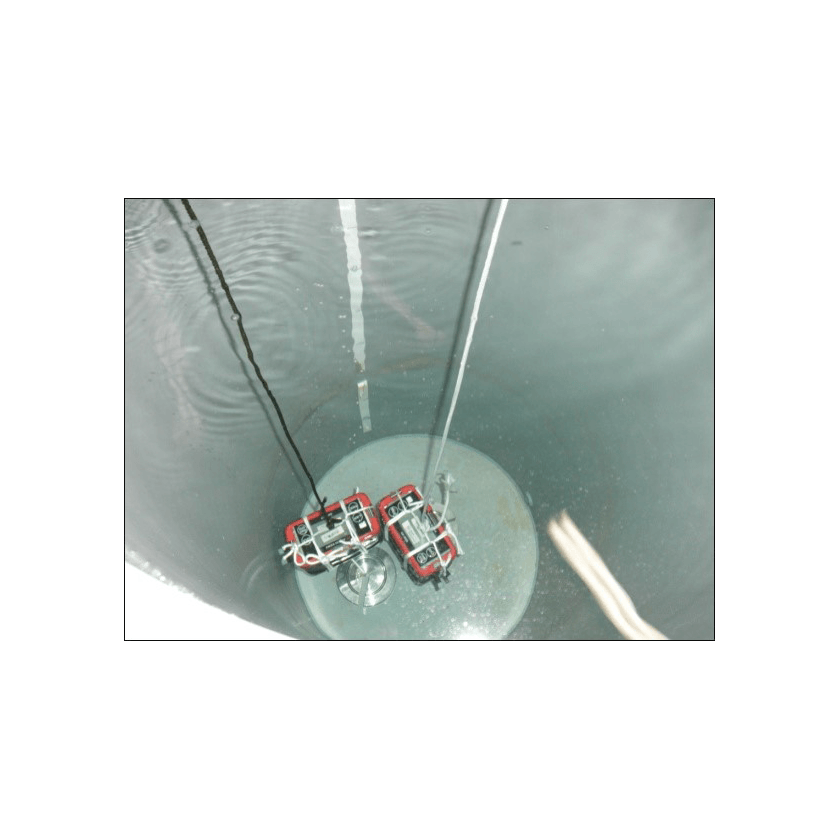

The unit is intrinsically safe for hazardous areas and designed to be waterproof to IP67. In the SC-8000, users have an extremely rugged unit for the most demanding situations.
SC-8000 can detect some of the most common toxic gases. The SC-8000 detects Silane (SiH4), Phosphine (PH3), Arsine (AsH3), Ammonia (NH3), Hydrogen Chloride (HCl), Chlorine (Cl2) as well as Hydrogen Fluoride (HF), plus many others. See Gas list for all gases.
|Refer to Gas List
|Refer to Gas List in Data sheet
|Gas alarm (latched), Flow failure, Sensor disconnection, Low battery, Circuit failure, Calibration failure
|Dry cell/Li-ion rechargeable battery
|Dry cell : Over 18hours / Li-ion rechargeable battery : Over 25hours
|-10 to 40°C / 20 to 88%RH
|164x81x154mm / Approx.1.0kg
|Ingress proof rating
|Exia IIC T4
|ATEX / IECEx, TIIS, CE marking
|LCD display (7segments, bar meter), ZERO/SPAN adjustment, Pilot indicator, Pump stop function, Datalogger, Password function, Bump test function
