Portable Gas Detectors

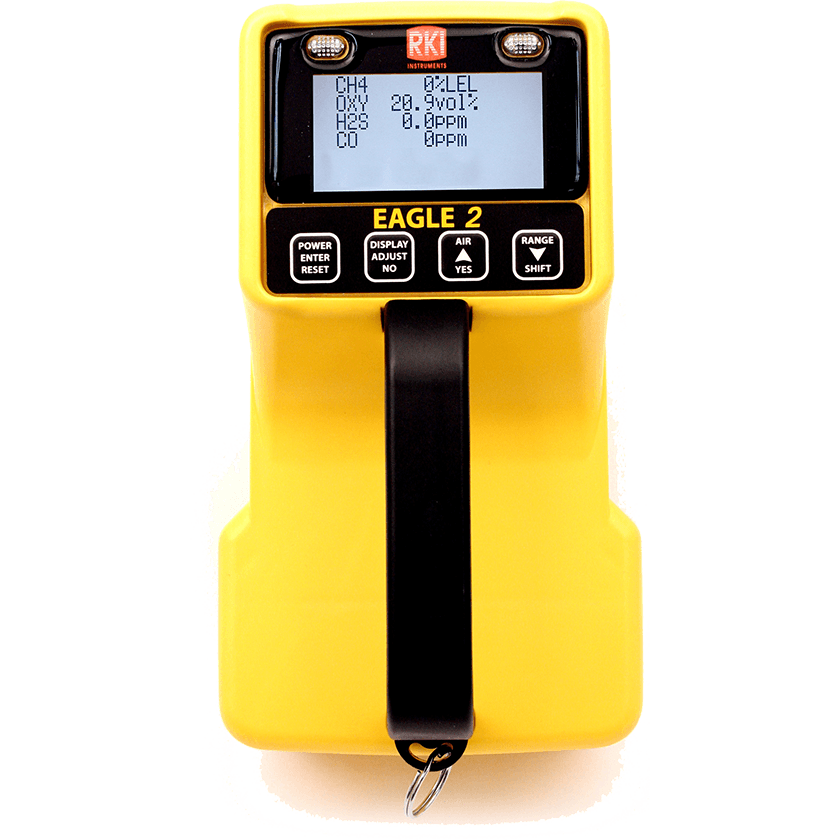

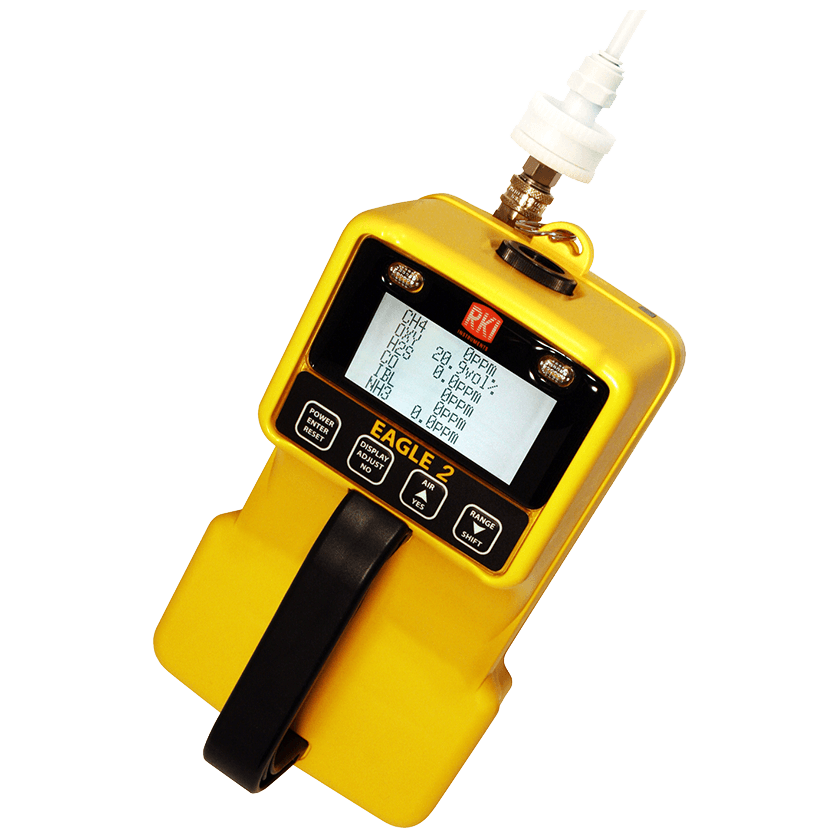

Eagle 2

6 Gas Detector for confined space, PID's , Super-Toxic and IR Sensors

RKI is proud to offer the next generation of their popular EAGLE portable gas detector. Equipped with features not available on competitive units, the EAGLE 2 is a powerful instrument that does more than just offer the standard confined space protection for LEL, O2, H2S and CO.

PLEASE NOTE: Eagle 2 does NOT have ATEX approval so cannot be used in UK / Europe for Hazardous area applications.

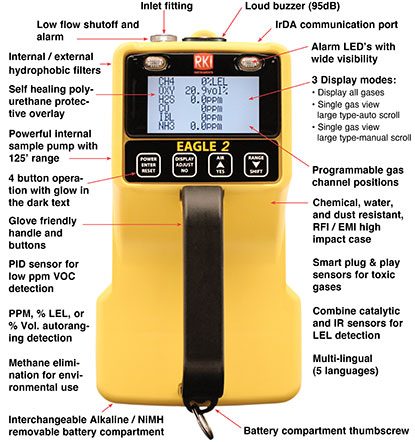

Eagle2_Diagram

The EAGLE 2 available features include a PID sensor for detecting high or low ppm levels (0-50 & 0-2,000) of VOC gases; % volume capability for CH4 and H2 using a TC (thermal conductivity) sensor; ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 (ppm or % volume), methane or hydrocarbons in LEL and % volume ranges;
Optional LEL / ppm H2 specific sensor, methane elimination feature for environmental applications; and a variety of super toxic gases including NH3, AsH3, CO2, Cl2, F2, HF, HCl, NO2, O3, PH3, SiH4, and SO2.

Made in U.S.A.

Specification

Enclosure Weatherproof, chemical resistant, RFI / EMI coated high impact polycarbonate-PBT blend. Can operate in 2.0” of water without leakage. Ergonomically balanced with rugged top mounted handle. Water & dust resistant equivalent to IP64.
Dimensions 9.5” L x 5.25” W x 5.875” H
Weight 3.8 Lbs (standard 4 gas with batteries)
Detection Principle Catalytic combustion, electrochemical cell, galvanic cell, infrared, photo ionization detector, and thermal conductivity.
Sensor Life 2 Years under normal conditions.
Sampling Method Powerful, long-life pump (over 6,000 hours) can draw samples over 125 feet. Flow rate approximately 2.0 SCFH
Display 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll. Polyurethane protected overlay. Backlight, illuminates for alarms and by demand with adjustable time.
Language Readout can display in 5 languages (English, French, German, Italian, or Spanish.
Alarms 2 Alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable.
Alarm Method Buzzer 95 dB at 30 cm, four high intensity LED’s.
Controls 4 External glove friendly push buttons for operation, demand zero, and autocalibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features.
Continuous Operation At 70°F, 16 hours using alkaline batteries, or 18 hours using Ni-MH.
Power Source 4 Alkaline or Ni-MH, size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines).
Operating Temp. & Humidity -20°C to 50°C (-4°F to 122°F), 0 to 95% RH, non-condensing.
Response Time 30 Seconds to 90% (for most gases) using standard 5 ft hose.
Safety Rating Intrinsically Safe, Class I
Groups A, B, C, D.Approvals: CSA / CE
Standard Accessories Shoulder strap, alkaline batteries, hydrophobic probe, and 5 foot hose, internal hydrophobic filter
Optional Accessories
  • Dilution fitting (50/50)
  • Ni-MH batteries
  • Battery charger, 115 VAC, 220 VAC, or 12 VDC (charge time 4 hours) with continuous operation function
  • Extension hoses
Warranty Two year material and workmanship, one year for PID sensor
