The Riken Keiki GM-600 is an indoor stand-alone Ethylene Oxide (EO) monitor.
Ethylene Oxide is used for the sterilisation of hardware and is extremely toxic.
Persons working in sterilisation facilities, must have early warning of Ethylene Oxide leaks.
Using the GM-600 will provide advanced warning of minimal Ethylene Oxide leaks should they occur.
Users find the detector compact and lightweight; the unit is user friendly and simple to install. GM-600's can be wall mounted at eye level if desired.
Simple to self install.
Green for normal gas levels, orange for caution 1st alarm & red for 2nd danger alarm.
Easy connection to external accessories such as remote sounder beacons, data loggers, dialers & BMS.
Included in price for sensor mounting at low level with monitor at eye level.
The GM-600 displays alarm notifications in different colours according to warning level. This is a unique feature of the Riken Keiki 600 series of instruments.
The gas detection unit comes with pre-set alarms set to high and high high, users are able to program their own alarm levels if desired, and access relay outputs for 1st and 2nd alarms in addition to a 4-20mA output.
These features allow customers to connect optional external accessories, such as additional sounders and beacons.
The instrument comes ready to operate with a 24VDC power supply, and an optional 240VAC main adapter is also available.
The GM-600 has a highly sensitive semiconductor sensor.

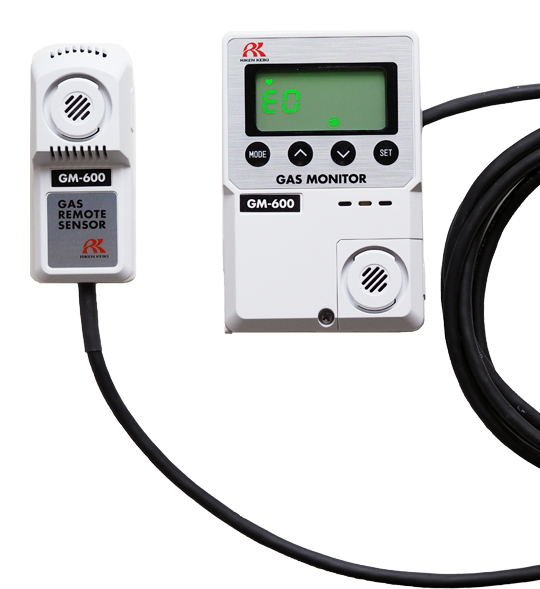

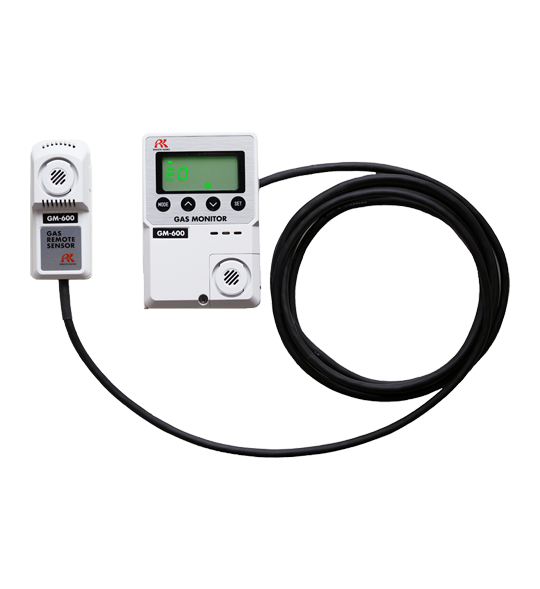

The GM-600 comes complete with a 3m extender cable, the extender allows the unit be mounted outside the room with the sensor inside.
Detection protects personnel, by allowing users to evaluate adequacey of the room prior to entry.
Customers can specify optional extras that include a battery backed UPS ( WPSU24 Series) in addition to sounder beacon(s) (SB-100 ).
Customers of the GM-600 are those using Ethylene Oxide sterilisation autoclaves in addition to Research Laboratories.
The GM-600 is a member of the 600 series of stand-alone monitors, the 600 Series family also includes OX-600, EC-600 and RI-600.
The GM-600 is a high performance cost effective solution when Ethylene Oxide monitoring is required.
| Model Name | GM-600 |
|---|---|
| Detection Principle | Semiconductor Method |
| Gas Detected | Ethylene Oxide ( EO) |
| Sampling Method | Diffusion or remote sampling method with optional extender cable |
| Gas Alarm Contact | No-voltage contact 1a or 1b and normally de-energized ( energized in response to an alarm ) |
| Fault alarm pattern | Auto-reset |
| Alarm Levels | Two preset alarms (H-HH), alarm 1 = 10ppm , alarm 2 = 50ppm |
| Display of Alarm | 1st gas alarm: , flashing AL1 light or orange light, buzzer 2nd gas alarm: , flashing AL2 light or red light, buzzer |
| Alarm Method | Latching or Non-latching |
| Alarm Contact | Dry contact, Form A or Form B, Form A standard Factory Setting, normally open (closed in ALARM) |
| Display | Digital LCD (5 digits, 7 segments / Green, Orange, Red) ( back light will be OFF during normal operation) |
| Trouble Alarm / Self-Diagnosis | System trouble / sensor connection trouble |
| Display of Trouble Alarm | Buzzer / content indication (flashing of orange error message) |
| Trouble Alarm Method | Non-latching or Latching |
| Contact Capacity | 125VAC, 1A or 30VDC, 1A (Resistive load) |
| Output Signal | 4 ~ 20mA (Non-isolated, Resistive load under 300O) |

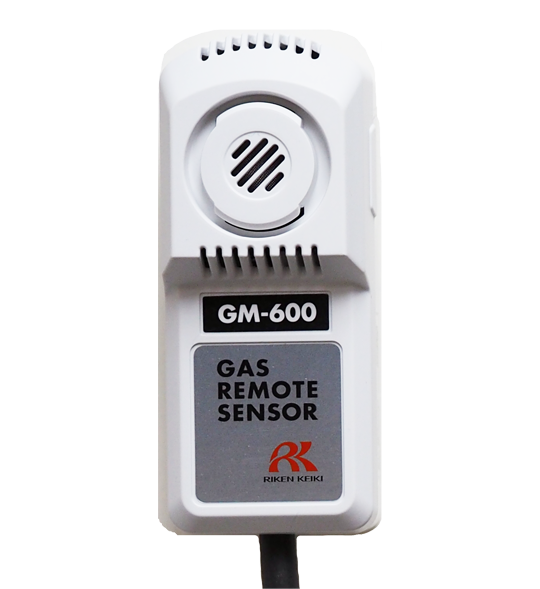

| Remote Extender Cable | 3M Extender cable with remote sensor head |
| Power Sources | 24VDC±10%, ( 240VAC adapter available ) |
| Power Consumption | 24VDC specification: MAX 4W |
| Gas Alarm pattern | Auto-reset |
| Initial Clear | About 25 seconds |
| Operating Temperature | 0°C ~ 40°C (no sudden change) |
| Operating Humidity | Below 90%RH (non-condensing) |
| Mounting Equipment | Wall mounting, sensor integrate type or remote type |

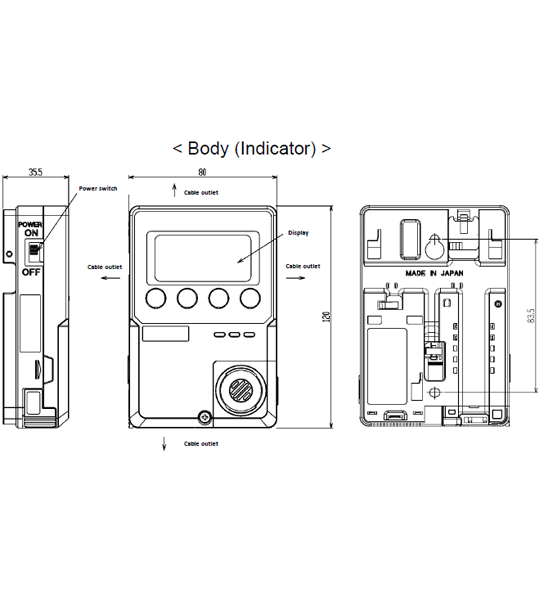

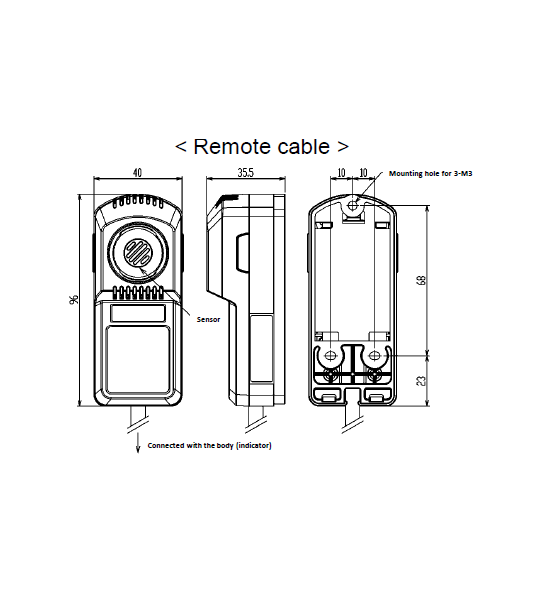

| Dimension | Body: approx. 80mm(W) x 120mm(H) x 35.5mm(D) / 3.15”(W) x 4.72”(H) x 1.2”(D) Remote sensor (exclude the protrusion): approx. 40mm(W) x 96mm(H) x 35.5mm(D) / 1.57”(W) x 3.78”(H) x 1.2”(D) |
| Weight | 24VDC specification: approx. 180g (6.34 oz), Remote sensor: approx. 55g (1.94 oz) (excluding cable) |
| *Under normal conditions | |
