SB-100.

Outdoor, High Output IP Rated 100dB LED Sounder Beacon

The SB-100 features a 100dB(A) alarm sounder combined with a high output L.E.D. beacon.

SB-100 is compact, situated in robust housing, and is ideal for all general signalling applications including gas detection.
The array of 24 high output L.E.Ds generates over 120 candela of light output and can be used set to either steady or a flashing mode.

A sounder & beacon may be connected from a single supply for simultaneous operation, or from a separate supply for an independent operation.

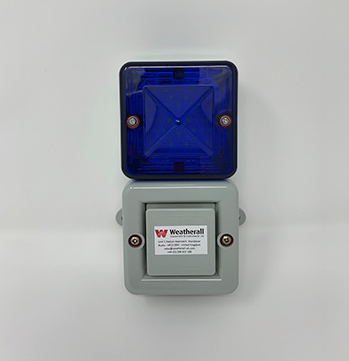

SB-100 Blue

Specification

Sounder:

Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
Nominal output: 99dB(A) @ 1m +/- 3dB - Tone 1 [90dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Volume control: On board potentiometer
Effective range: 30m/99ft @ 1KHz

Beacon

Light source: High intensity L.E.D. array.
24 x Superflux type high output L.E.D’s
Options: Steady or 2Hz flash mode (on board selection)
Peak/Effective Intensity cd:
Green L.E.D: 176cd - measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm²cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximize output and to ensure the signal is most effective in high ambient light.

General:

Voltages DC: 12Vdc; 24V dc
Voltages AC: 115Vac; 230V ac
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Lens material: PC
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.50kg/1.1Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.
*Candela measurements representative of performance with clear lens at optimum voltage.
