Riken Keiki OX-07 Type C 0-100% Volume Oxygen Outlet Monitor
The OX-07 Type C measures Oxygen in the range of 0-100% Volume. It also measures Nitrogen by measuring the lack of Oxygen in the nitrogen pipeline. It is designed to measure Oxygen Purity in Medical Gas Pipelines as well as Medical Oxygen Concentrators.
Check Medical Pipelines for purity
Easy to user calibrate
No special training needed to operate
Ideal for snapshot checks on Oxygen and Nitrogen pipelines
UK Government Health Technical Memorandum ( HTM) 02-01 details the operation , Management as well as Maintenance of Medical Gas pipelines in hospitals. These Guidelines provide a procedure for all medical gas safety persons to work from.
This has encouraged the regular checking of piped gases to ensure the quality of the gas delivered to patients. This includes the monitoring of supplies at service distribution points and patients rooms.

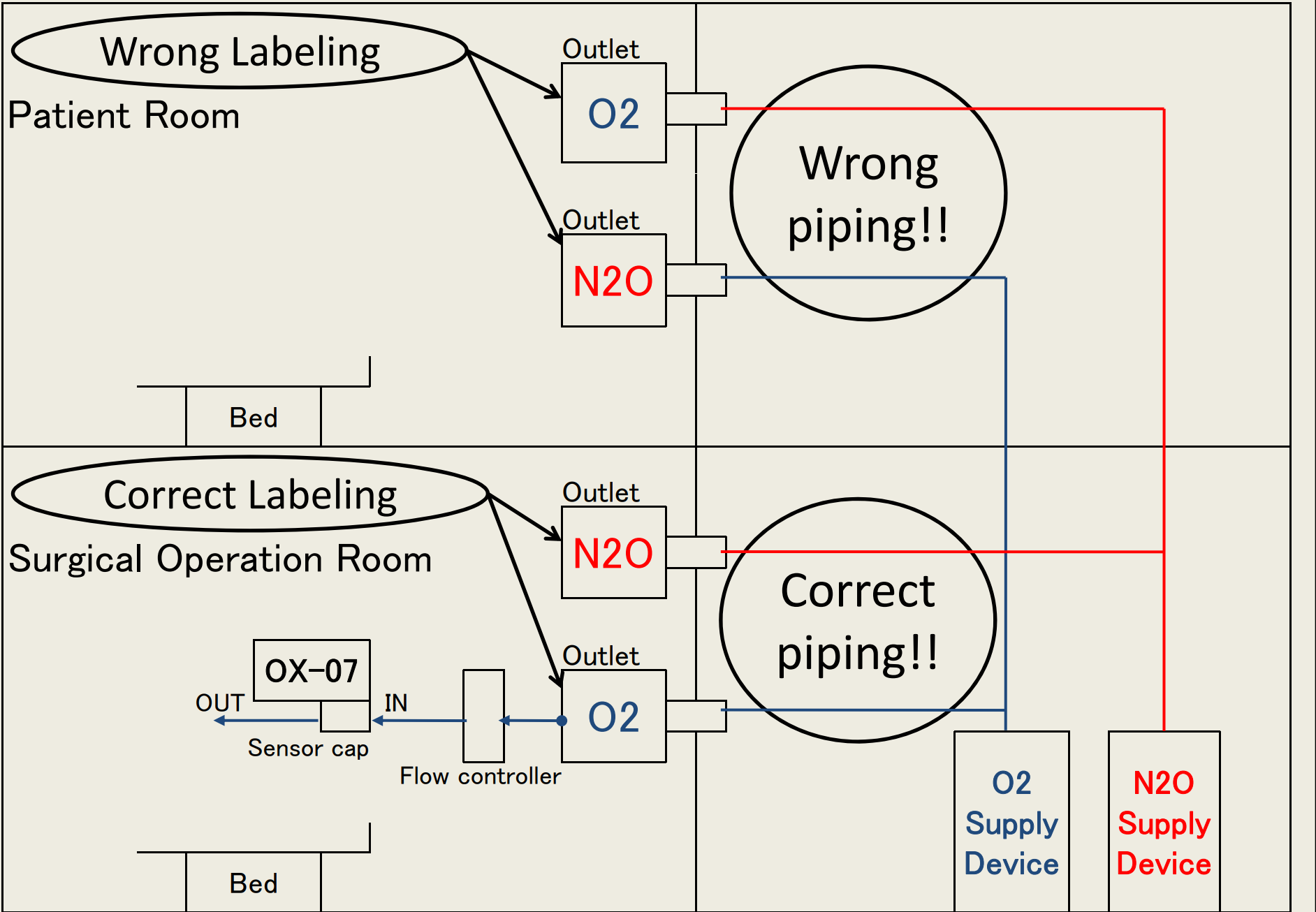

In order to check medical gas piping systems during and after installation, Medical Gas Engineers need to be able to measure Oxygen 0-100% Volume quickly easily and reliably.
The Riken Keiki OX-07 is an ideal solution for Medical Gas Engineers needing to check and maintain gas pipelines and Oxygen Concentrators.
The OX-07 connects to the pipeline or Concentrator via a simple adapter and tube. It is easy to use simply turn on perform an Air Calibration then connect to the pipeline and measure. The Unit is robust and reliable and comes as standard with an impact resistant case. It is light weight. Regular bump testing is easy via a simple single push button Air Calibration.
The Unit has a large and clear LCD display with Auto back-light.The OX-07 will operate for up to 5000 hours on one set of batteries in addition is has alarms for fail conditions. These are Audio/Visual as well as Vibration alarms.
| Measuring Gas and ranges | 02. 0-100% ( Resolution 0.2%/digit) |
| Display | LCD digital display ( Auto backlight ) |
| Power Source | Alkaline dry cell (2-AA size ) 2 pcs |
| Continuous operation | Max 5000 hours ( 25deg c no alarm no back-light |
| Operating temp and humidity | -20 – + 50 deg c below 95% TH ( non condensing |
| Dimensions and weight | 66 (w)x 114(h)x33(d)mm approx 230g |
| Alarms ( Fault alarm only ) | Sensor disconnection , low battery , circuit failure , calibration range error |
| Alarm functions | Flashing light , Intermittant buzzer , display of error message |
| Standard accessories | Sensor cap , Alkaline batteries 2 pcs |
| Optional accessories | Carry case , Protective rubber boot, Belt clip , Extension cable ( 5m) |
